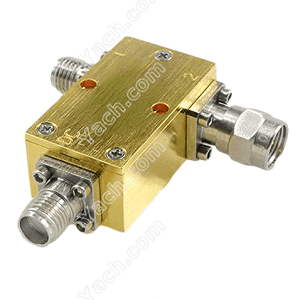

400 MHz to 50 GHz 2.4mm RF Bias Tees, 2000 mA & 100 VDC, PN: BT523633, $999
更新：2022-05-28 21:23:20 点击：
❶Features:
*400 MKz to 50 GHz
*2000 mA & 100 VDC
*VSWR＜2.0
*Insertion Loss＜3.0 dB max.
*Isolation: 30 dB typ.
❷Application:
*Amplifier Biasing
*Coax
*DC Return/ Block
*Test & Measurement
*Wireless Systems
*Transmitting Power With a single
*Communication Systems
❸Description:
*50 KHz to 50 GHz 2.4mm RF Bias Tees, 2000 mA & 100 VDC BT523633 bias tees (also called bias T) have a 2.4mm connector RF port that are female gender. This Yach.com female 2.4mm bias tees design is rated for a minimum frequency of 50 KHz and a maximum frequency of 50 GHz. This 2.4mm bias tees / T is rated for a max. DC voltage of 100 Volts and a max. current of 2000 mA. The BT523633 bias T with 2.4mm connector series for RF port is designed with a maximum VSWR of 2.0:1 and a RF to bias isolation typical of 30 dB. Yach.com's RF bias tees accept customization. Common modeles are in stock, the fastest delivery on the same day. Welcome to your inquires!
详情
Pricing:
| Quantity (pcs) | Price ($) |
| 1-4 | 999 |
| 5-9 | 989 |
| 10-24 | 979 |
| 25-49 | 969 |
|
≥50 |
959 |
Datasheet to download
Key Specifications：
|
RF Port Connector |
2.4mm Female |
|
DC Port Connector Serie |
SMA Female |
|
Minimum Frequency |
400 MHz |
|
Maximum Frequency |
50 GHz |
|
RF Port Maximum VSWR |
2.0:1 |
|
Insertion Loss |
3.0 dB max. |
|
Maximum Voltage |
100 VDC |
|
Maximum DC Current |
2000 mA |
|
RF Power |
2 W min. |
